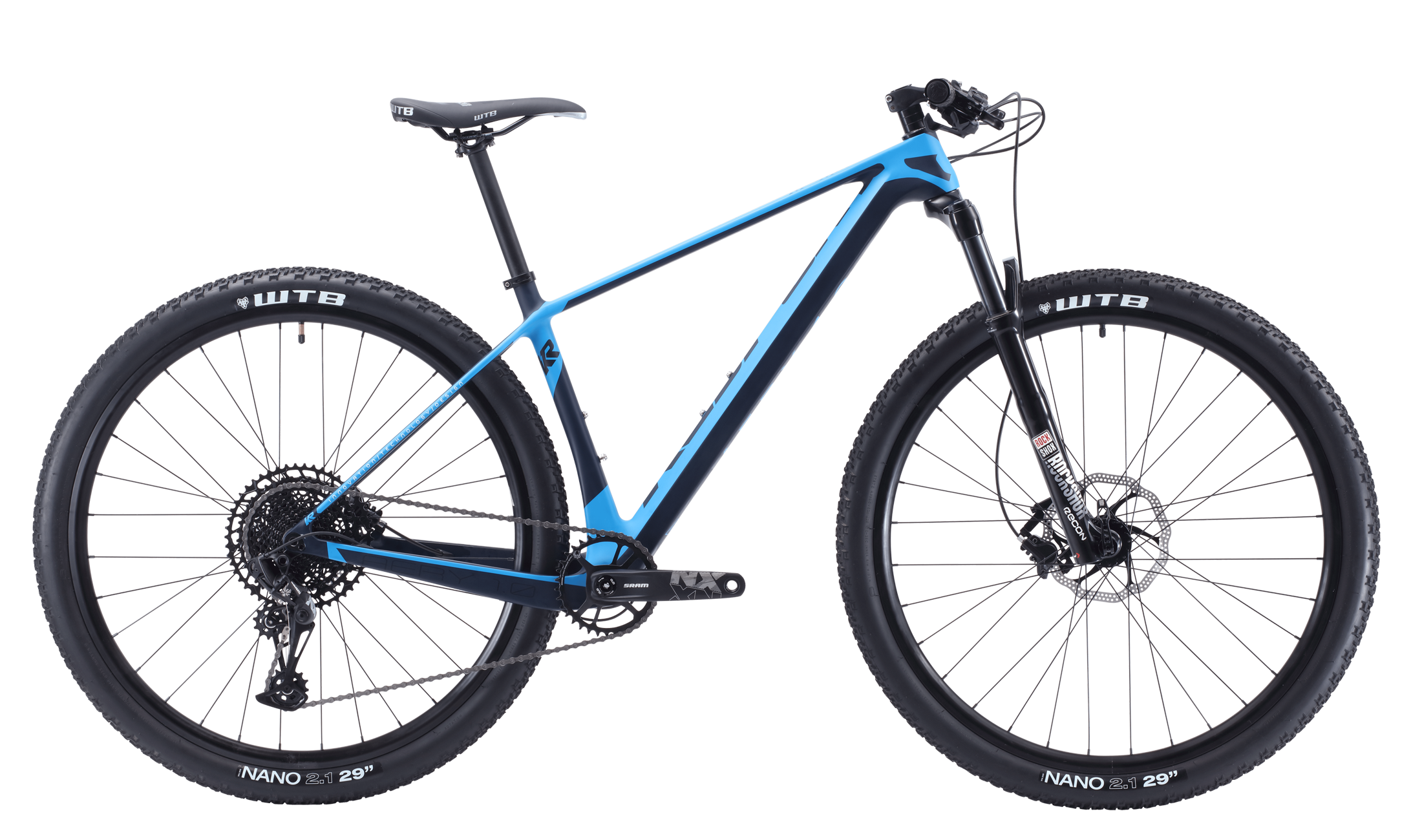

Aery
$787.00
FRAMESET
| FRAME | Carbon, sport 29 Geometry, taper headtube, chainstay-mounted disc brake, replaceable alloy derailleur hanger |
| SEAT BINDER | Alloy one bolt clamp, |
SUSPENSION
| FORK | Rockshox air fork,w/lock |
WHEELS
| RIMS | Zyxxk alloy disc rim |
| FRONT HUB | Boost 110mm alloy seal bearing |
| REAR HUB | Boost 148mm alloy seal bearing |
| SPOKES | stainless black |
| FRONT TIRE | WTB 29″x2.1 MTB tire |
| REAR TIRE | WTB 29″x2.1 MTB tire |
| INNER TUBE | 29″x2.1″ tube |
DRIVETRAIN
| FRONT DERAILLEUR | / |
| REAR DERAILLEUR | SRAM NX |
| SHIFT LEVERS | SRAM NX |
| CASSETE | SRAM NX |
| CHAIN | KMC 12SP |
| CRANKSET | SRAM NX |
| CHAINRINGS | SRAM NX |
| BOTTOM BRACKET | SRAM NX |
COCKPIT
| STEM | Zyxxk alloy,minus 13 degree |
| HANDLEBARS | Zyxxk alloy, flat bar |
| GRIPS | Ergon MTB grip |
| SADDLE | WTB MTB saddle |
| SEATPOST | Zyxxk alloy, two bolts |
BRAKES
| FRONT BRAKE | Shimano hydraulic disc brake |
| REAR BRAKE | Shimano hydraulic disc brake |
ACCESSORIES
| PEDALS | Alloy Flat pedal |
SPECIFICATIONS
FRAMESET
| FRAME | Kespor alloy sport Geometry, 700C road |
| SEAT BINDER | Alloy one bolt clamp, |
SUSPENSION
| FORK | Alloy fork |
WHEELS
| RIMS | Zyxxk alloy light rim |
| FRONT HUB | Alloy super light QR hub |
| REAR HUB | Alloy super light QR hub |
| SPOKES | steel black |
| FRONT TIRE | ChaoYang 700Cx32C tire |
| REAR TIRE | ChaoYang 700Cx32C tire |
| INNER TUBES | 700Cx32C |
DRIVETRAIN
| FRONT DERAILLEUR | Shimano Claris |
| REAR DERAILLEUR | Shimano Claris |
| SHIFT LEVERS | Shimano Claris |
| CASSETTE | Shimano Claris |
| CHAIN | KMC 8SP |
| CRANKSET | Prowheel hollow 8sp |
| CHAINRINGS | Prowheel hollow 8sp |
| BOTTOM BRACKET | Hollow type |
COCKPIT
| STEM | Zyxxk alloy, minus 7 degree |
| HANDLEBARS | Zyxxk alloy, road bar |
| GRIPS | carbon pattern bandage. |
| SADDLE | SelleRoyal Kespor Coo. MTB saddle |
| SEATPOST | Zyxxk alloy, one bolt |
BRAKES
| FRONT BRAKE | Zoom Mechanic disc brake |
| REAR BRAKE | Zoom Mechanic disc brake |
ACCESSORIES
| PEDALS | Alloy pedal |
GEOMETRY
SMALL
| Seatpost Length | 120MM,JD-SBC02 |
| Saddle Width | 143mm |
| BB Height, 27.5×2.8″ | 306mm |
| Handlebar Width | 750MM |
| Reach | 400mm |
| Top Tube Length, Horizontal | 575mm |
| Stack | 610mm |
| Wheelbase | 1114mm |
| Chainstay Length | 430mm |
| BB Height, 27.5×3.0″ | 312mm |
| Front Center | 689mm |
| BB Drop | 51mm |
| Seat Tube Angle | 74° |
| Head Tube Angle | 67.5° |
| Seat Tube Length | 394mm |
| BB Height, 29×2.3″ | 319mm |
| Head Tube Length | 95mm |
| Bike Standover Height | 757mm |
| Fork Rake/Offset | 51mm |
| Fork Length, Full | 530mm |
| Trail | 95mm |
MEDIUM
| Seatpost Length | 120MM,JD-SBC02 |
| Saddle Width | 143mm |
| BB Height, 27.5×2.8″ | 306mm |
| Handlebar Width | 750MM |
| Reach | 400mm |
| Top Tube Length, Horizontal | 575mm |
| Stack | 610mm |
| Wheelbase | 1114mm |
| Chainstay Length | 430mm |
| BB Height, 27.5×3.0″ | 312mm |
| Front Center | 689mm |
| BB Drop | 51mm |
| Seat Tube Angle | 74° |
| Head Tube Angle | 67.5° |
| Seat Tube Length | 394mm |
| BB Height, 29×2.3″ | 319mm |
| Head Tube Length | 95mm |
| Bike Standover Height | 757mm |
| Fork Rake/Offset | 51mm |
| Fork Length, Full | 530mm |
| Trail | 95mm |
LARGE
| Seatpost Length | 120MM,JD-SBC02 |
| Saddle Width | 143mm |
| BB Height, 27.5×2.8″ | 306mm |
| Handlebar Width | 750MM |
| Reach | 400mm |
| Top Tube Length, Horizontal | 575mm |
| Stack | 610mm |
| Wheelbase | 1114mm |
| Chainstay Length | 430mm |
| BB Height, 27.5×3.0″ | 312mm |
| Front Center | 689mm |
| BB Drop | 51mm |
| Seat Tube Angle | 74° |
| Head Tube Angle | 67.5° |
| Seat Tube Length | 394mm |
| BB Height, 29×2.3″ | 319mm |
| Head Tube Length | 95mm |
| Bike Standover Height | 757mm |
| Fork Rake/Offset | 51mm |
| Fork Length, Full | 530mm |
| Trail | 95mm |
EXTRA - LARGE
| Seatpost Length | 120MM,JD-SBC02 |
| Saddle Width | 143mm |
| BB Height, 27.5×2.8″ | 306mm |
| Handlebar Width | 750MM |
| Reach | 400mm |
| Top Tube Length, Horizontal | 575mm |
| Stack | 610mm |
| Wheelbase | 1114mm |
| Chainstay Length | 430mm |
| BB Height, 27.5×3.0″ | 312mm |
| Front Center | 689mm |
| BB Drop | 51mm |
| Seat Tube Angle | 74° |
| Head Tube Angle | 67.5° |
| Seat Tube Length | 394mm |
| BB Height, 29×2.3″ | 319mm |
| Head Tube Length | 95mm |
| Bike Standover Height | 757mm |
| Fork Rake/Offset | 51mm |
| Fork Length, Full | 530mm |
| Trail | 95mm |
